Feature
Full servo FMX series high-speed window pasting machine is a high-end flat pasting machine under Fengmai. Each action of the machine is driven by an independent servo motor, with a total of 8 sets of intelligent servo systems. The maximum speed of single channel operation can reach 36000 sheets/hour, and the front and back positions of glue and film can be digitally adjusted on the human-machine interface without stopping the machine. The pasting accuracy can be controlled within 1mm. The machine has stable, efficient, silent, and intelligent operation characteristics.

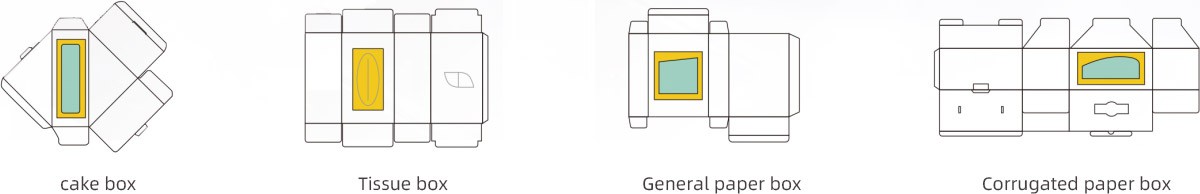

Parameter

Model	FMX-850HS	FMX-1150HS(Optional double line model)	FMW-1300HS(Optional double line model)
Paper size	W850mm×L850mm - W150mm×L180mm	W1150mm×L900mm - W180mm×L180mm	W1300mm×L900mm - W180mm×L180mm
Film size	W450mm×L450mm - W30mm×L50mm	W700mm×L450mm - W30mm×L50mm	W800mm×L450mm - W30mm×L50mm
Paper thickness	Cardboard:200-2000g/㎡ Corrugated board:1-6mm	Cardboard:200-2000g/㎡ Corrugated board:1-6mm	Cardboard:200-2000g/㎡ Corrugated board:1-6mm
Film thickness	PET:0.03~0.2.25mm   PVC:0.03~0.3mm	PET:0.03~0.25mm   PVC:0.03~0.3mm	PET:0.03~0.25mm   PVC:0.03~0.3mm
Positioning accur	Top/bottom ± 1 mm	Top/bottom ± 1 mm	Top/bottom ± 1 mm
Mechanical speed	3000-36000 sheet/hour	3000-36000 sheet/hour	3000-36000 sheet/hour
Power voltage	380 V/50HZ（hree phase)	380 V/50HZ（three phase)	380 V/50HZ（three phase)
Power required	16KW	18.5KW	21KW
Weight machine	2850KG	3350 KG	3550 KG
Dimension (L x W x H)	L6500mm×W1630mm×H1750mm	L6500mm×W1900mm×H1750mm	L6500mm×W2050mm×H1750mm

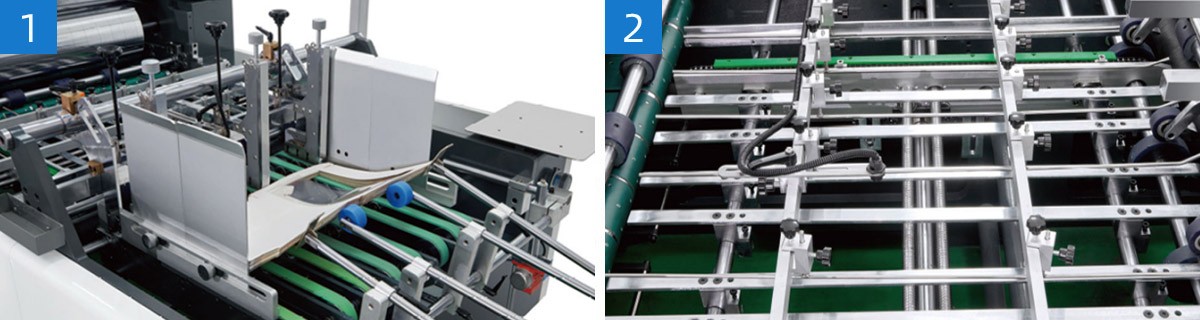

1. Paper feeding section
Imported belts are used for bottom paper extraction, allowing continuous paper feeding without stopping the machine. The intermittent belt conveyor is driven by an independent servo motor and controlled by a photoelectric system, eliminating the need to set paper length dimensions and ensuring high-speed and stable operation. Multiple conveyor belts can be adjusted laterally in any situation, and are equipped with vibration motors. Additionally, belt vacuum adsorption can be installed according to customer requirements.
2. Push gauge department
This unit adopts independent servo drive and employs dual-row pushers to ensure the stability of paper pushing. Each row of pushers can be independently adjusted for front and rear positions. Each single-row pusher has six pushers. When switching between the first, second, and third speeds, the pushers need to be removed from each row. The pusher part adopts a chain and sprocket structure, making the installation and replacement of the pusher head very convenient and quick. The paper blocking parts on both sides and the paper support strip in the middle are designed flexibly, allowing for free movement to the left and right. Small-sized paper boxes can all be pushed using a single-row pusher.

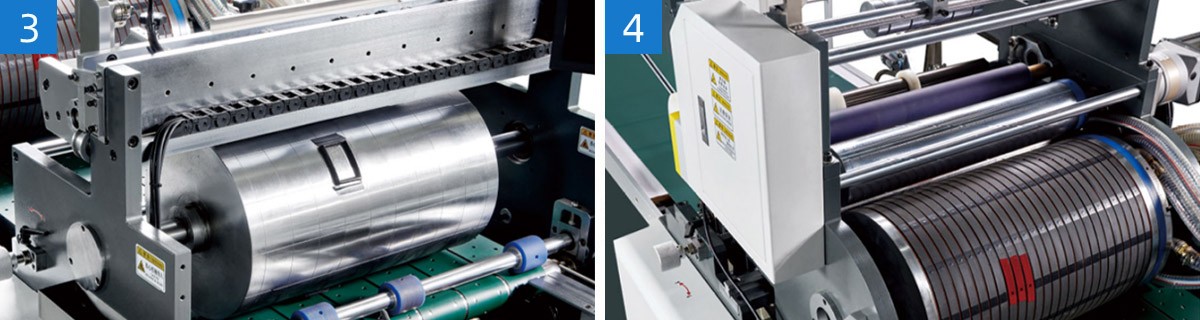

3. Gluing department
Utilizing independent servo drive, a single high-hardness stainless steel glue hose roller transfers glue, allowing for adjustment of glue thickness according to product requirements. Flexible stencil printing is employed, and the roller on which the stencil is installed is engraved with reference lines. Photoelectric sensing is automatically activated. During the glue application process, the roller will automatically retract when there is no paper, and the front and rear positions of the glue can be digitally adjusted within the human-machine interface. Additionally, the left and right positions of the glue can be adjusted without stopping the machine. The glue roller can be pulled out in parallel for easy cleaning.
4. Film application department
Utilizing independent servo drives, the system digitally adjusts the length and size of the adhesive film. Separate servo drives operate the rotary cutter for precise cutting, featuring a variable three-speed operation that allows for on-the-fly adjustments to the front, back, left, and right positions of the adhesive film. The suction box incorporates advanced German technology, enabling segmented opening and closing functions. The unique principle employed in the vacuum suction of the adhesive film ensures more stable bonding. Additionally, it is equipped with a function to cut the adhesive film in the middle (such as for facial tissue boxes) and a tracking and positioning function for printing adhesive films.

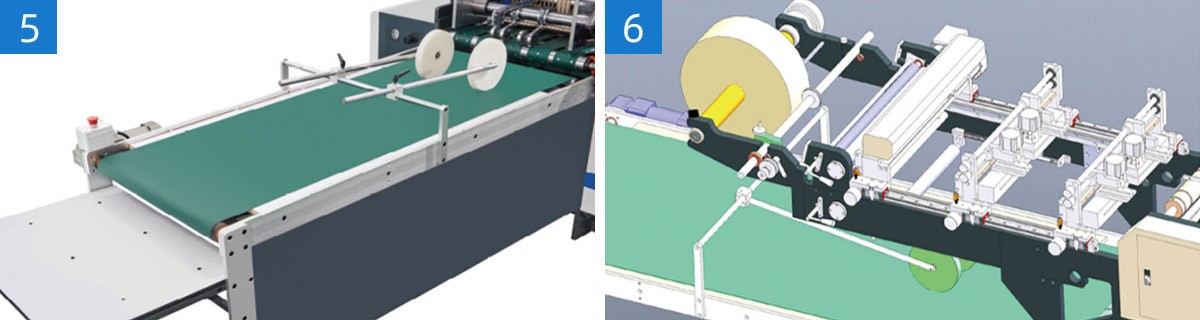

5. Paper delivery section
Imported PU belts are used for neat paper stacking in a layered manner. The paper stacking section can adjust its speed through frequency conversion and its height is adjustable. It is equipped with a photoelectric sensor for stopping the machine in case of paper disorder, and a counting function can be installed according to user requirements.
6. Corner cutting and crimping (optional configuration)
Based on product requirements, you can choose to add two sets of corner cutting and creasing functions, or install an additional set of horizontal creasing mechanism.
