特性Features
全伺服系列高速贴窗机为公司目前研发的高端平贴机，机器主要特点是全智能调节各项参数全机每个动作都是采用独立伺服电机驱动 ，共有8套智能伺服系统，可以不停机在人机界面上数字化调节胶水和胶膜的前后位置，机器加速过程中可保持贴片精度不变，单通道 运行最高速度可达25000张/小时，贴片精度可以控制在1mm以内，配备智能真空吸附系统，吸风箱采用分段式开合功能，全方位保障 生产产品的稳定性，机器具有稳定高效，静音、智能操作等特点。
The full servo series high-speed window pasting machine is a high-end flat pasting machine currently developed by the company. The main feature of the machine is full intelligent adjustment of various parameters. Each action of the whole machine is driven by an independent servo motor. There are 8sets of inelligent servo systems, which can digitally adjust the front and rear positions of glue and adhesive film on the man-machine interface without stop- ping. The placement accuracy can be kept unchanged during the acceleration of the machine, The maximum speed of single channel operation can reach 25000 sheets / hour, and the patch accuracy can be controlled within 1mm. It is equipped with intelligent vacuum adsorption system. The suction box adopts sectional opening and closing function to ensure the stability of production products in an all round way. The machine has the characteristics of stability, high eficiency, quiet and inteligent operation.

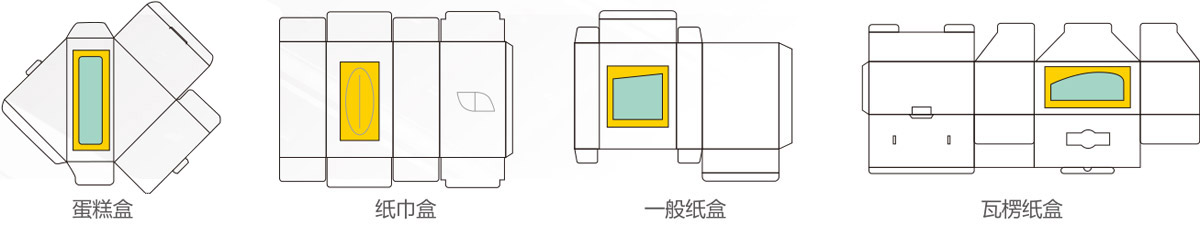

机器型号Model	FMW-800HS	FMW-880HS	FMW-1100HS (可选双通道机型 Optional double line model)
纸张规格 Paper size	W800mm×L650mm - W150mm×L150mm	W880mm×L680mm - W150mm×L180mm	W1100mm×L720mm - W180mm×L180mm
胶片规格 Film size	W400mm×L380mm - W30mm×L50mm	W450mm×L400mm - W30mm×L60mm	W650mm×L450mm - W30mm×L70mm
纸张克重Paper thickness	Cardboard:200-2000g/㎡ Corrugated board:1-5mm	Cardboard:200-2000g/㎡ Corrugated board:1-6mm	Cardboard:200-2000g/㎡ Corrugated board:1-6mm
胶片厚度Film thickness	PET:0.03∽0.2mm   PVC:0.03∽0.25mm	PET:0.03∽0.25mm   PVC:0.03∽0.3mm	PET:0.03∽0.25mm   PVC:0.03∽0.3mm
贴片精度Positioning accur	Top/bottom ± 0.5 mm	Top/bottom ± 1 mm	Top/bottom ± 1 mm
机器速度Mechanical speed	3000-25000 sheet/hour	3000-25000 sheet/hour	3000-25000 sheet/hour
电源电压Power voltage	380 V/50HZ（三相 three phase)	380 V/50HZ（三相 three phase)	380 V/50HZ（三相 three phase)
整机功率Power required	15 KW	15 KW	16.5 KW
整机重量Weight machine	2550 KG	2550 KG	3350 KG
外型尺寸Dimension (L x W x H)	L5200mm×W1500mm×H1750mm	L5700mm×W1630mm×H1750mm	L6000mm×W1850mm×H1750mm

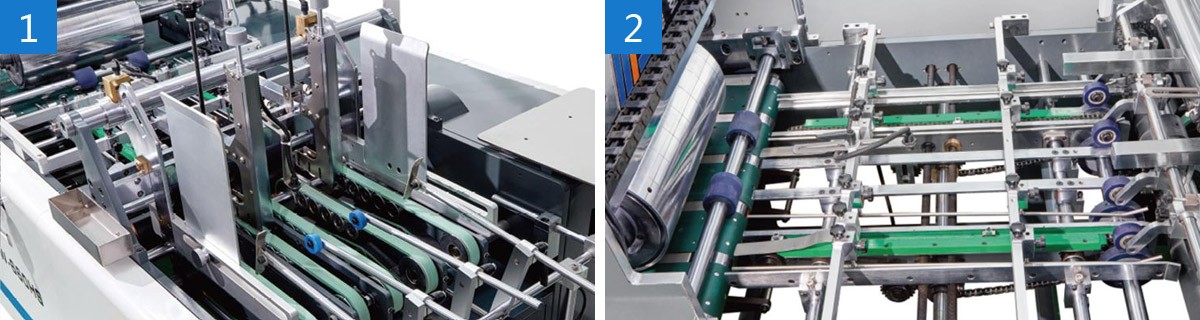

1、给纸部Paper Feeding Assembly
采用进口皮带进行底部抽纸，可不停机连续加纸，间隙式 皮带输送采用独立伺服驱动和光电配合控制，无需设置纸 张长度尺寸，保障高速稳定运转，多条输送皮带可在任意 情况下调整左右位置，并配有振动电机，也可根据客户要 求加装皮带真空吸附功能。
This machine used the Japan imported belt to draw out the paper from the bottom, which can continuously add paper without stopping the machine. The gap belt conveying adopts independent servo drive and photoe- lectric cooperation control, which does not need to set the length of paper to ensure high-speed and stable ope- ration. Multiple conveying belts can adjust the left and right positions under any circumstances. and are equip- ped with vibration motor. The belt vacuum adsorption function can also be added according to the require- ments of customers.
2、推规部Push Claw Assembly
本部采用独立伺服驱动，采用双排推规矫正来保障推纸的稳定性, 每排推规可独立调节前后位置，单排推规共有四个推爪，单双倍速 度切换时，每排推规需要取出两个推爪，推规部采用链条链轮结构 ，推爪头安装和更换非常方便快捷，两边挡纸部和中间托纸条设计 灵活，可随意移动左右位置，小尺寸纸盒均可采用单排推规来完成 推纸。
This part adopts independent servo drive, Double row push gauge correction is adopted to ensure the stability of paper pushing. Each row push gauge can independently adjust the front and rear posi- tions, There are 4 push claws on each row of push gauge The instal- lation and replacement of the push claw are very convenient and fast. A row of push gauge can be used to complete the operation of small-sizepaper.

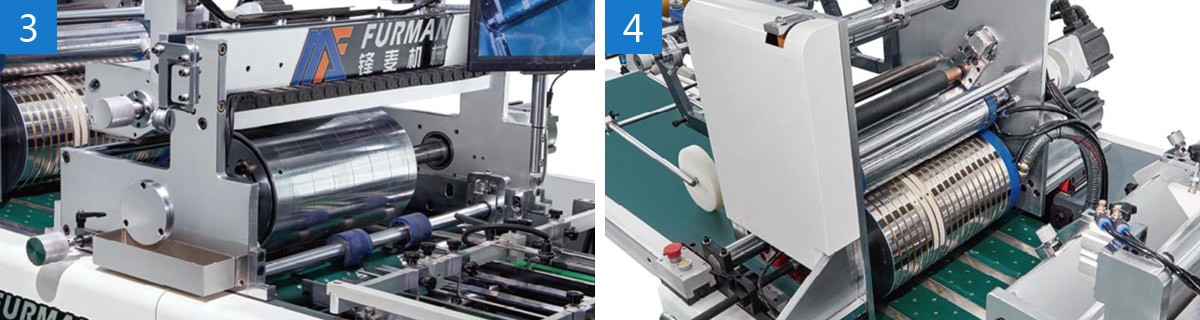

3、上胶部Gluing Assembly
采用独立伺服驱动，单条高硬度不锈钢胶水管辊转印胶水，可根据 产品要求调整胶水的厚薄，采用柔性模版印胶，安装模版的辊筒刻 有基准线，光电感应自动上胶，空张时会自动弹开，可在人机界面 内数字化调节胶水的前后位置，也可不停机调节胶水的左右位置， 胶水辊可以平行拉出方便清洗。
It adopts independent servo drive and a single high hardness stain- less steel glue pipe roller to transfer glue. The thickness of glue can be adjusted according to product requirements. It adopts flexible template transfer glue. The roller on which the template is installed is engraved with reference line, Photoelectric induction automatic gluing, The gluing part is equipped with the automatic lifting. The front and rear positions of glue can be digially adjusted in the man-machine interface, and the left and right positions of glue can also be adjusted without shutdown, Glue rollers can be pulled out in parallel for easy cleaning.
4、贴膜部Filming Assembly
采用独立伺服驱动，数字化调整胶膜的长短尺寸 ，独立伺服驱动滚刀分切，可变单双速运转，不 停机调整胶片贴合的前后左右位置，吸风箱采用 德国先进工艺，可实现分段式开合功能，真空吸 咐胶片采用独特原理，使贴合更加稳定，并配有 胶膜中间切开功能(如面巾纸盒)，以及印刷胶片 追踪定位功能。
It adopts independent servo drive to digitally adjust the length size of the plastic film, inde- pendent servo drive hob slitting, variable single and double speed operation, and non-stop to adjust the front, rear left and right positions of the film fitting. The air suction box adopts German advanced technology to realize the seg- mented opening and closing function, and the vacuum suction film adopts unique principle to make the ftting more stable, It is also equipped with the function of cutting the middle of the plastic film(Tissue box)and the function of trac- king and positioning the printed film.

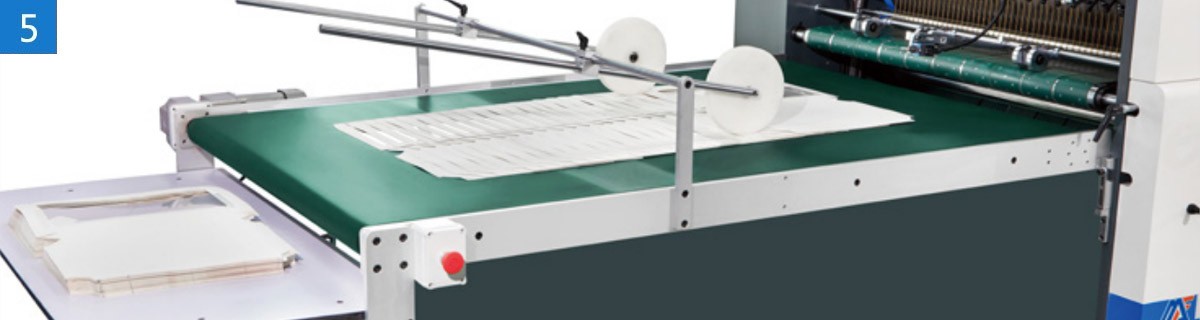

5、收纸部Paper Collecting
采用进口PU皮带层迭式整齐收纸，可变频调节 速度，收纸部可调高低，并配有乱纸停机光电， 也可根据用户要求安装点数功能。
The imported PU belt is used for stacking paper neatly, the speed can be adjusted by frequency conversion, the height of the paper receiving part can be adjusted, and it is equipped with paper disordering shutdown photoelectric. The counting function can also be installed accor- ding to the user's requirements.

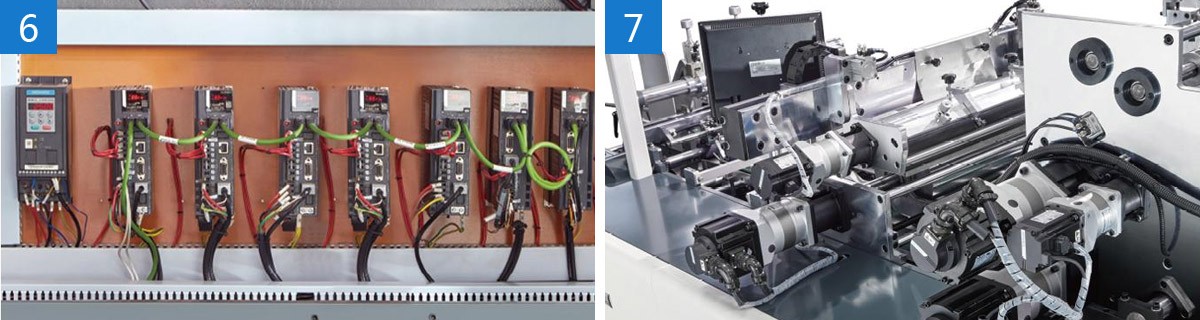

6、电器部Appliance parts
整机采用进口PLC程序控制，各种电气元件、检 测开关均采用德国、台湾、日本等公司产品。
The whole machine adopts PLC program control. All kinds of electronic components and detector switches are made in Germany Taiwan and Japan etc.
7、电器部Appliance parts
所有动作均由独立伺服驱动。整机配备8台伺服电 机和5u控制卡，保证机器加速稳定可靠。
All actions are driven by independent servo. The whole machine is equipped with 8 sets of servo motors and 5u control card to ensure stable and re- liable acceleration of the machine.
