特性Features

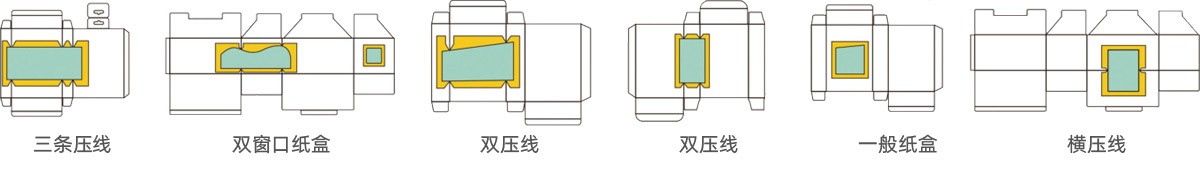

BMW系列自动切角压线贴窗机为公司自主研发的专利产品，该机型具备平贴和切角压线功能，可直接对卷筒胶片进行在线切角和压线 ，以及各种特殊的工艺孔和环保标识的击凸，该机型可同时压竖线和横线，并可根据产品需求进行加装双面胶贴头和连线贴磁铁和铁片，连线追踪印刷片材色标，机器具有贴片精度高，产品适用广等特点全数字化控制，运行中各项参数可微调，各工位配有报警传感 器，运行状态实时显示，是一款高效稳定的贴窗设备。
BMW series automatic corner cutting and wire pressing window patching machine has the functions of ordinary flat patching and film (V-cutting and creasing) window patching. this machine can realize the double creasing- double cutting-Circular angle -Round hole-Environmental protection loop mark on PVC. PET. PP film with the thickness of 0.08-0.3mm. original creation transverse cutting film high speed and quiet, peculian gluing assembly can be disengagedto avoid glue on belt in case of no paper.The double sided tape system can be installed online, flldital control function all parameters can be fine -tuned during operation. It is also equipped with multi-sensor detection of each station. real-timemonitoring of running state and abnormal speed reduction alarm functions. From our continual improvement and philosophy of humanized desian. so that it is easy to operate and excellent in ef- fciency, accuracy and stability
技术参数/Technical parameters

机器型号 Model	BMW-750L	BMW-920L	BMW-1050L
纸张规格Paper size	W730*L650mm-W100*L150mm	W900*L680mm-W150*L150mm	W1030*L720mm-W180*L180mm
胶片规格Film size	W330*L300mm-W30*L50mm	W380*L350mm-W50*L50mm	W450*L400mm-W50*L60mm
纸张克数Paper thickness	Cardboard:200~2000g/m2 Corrugated board:1-6mm	Cardboard:200~2000g/m2 Corrugated board:1-6mm	Cardboard:200~2000g/m2 Corrugated board:1-6mm
胶片厚度Film thickness	0.1~0.3mm（加温Heating 0.4mm）	0.1~0.3mm（加温Heating 0.4mm）	0.1~0.3mm（加温Heating 0.4mm）
贴片精度Positioning accur	上下Top/bottom±0.5mm 左右left/right±0.1mm	上下Top/bottom±0.5mm 左右left/right±0.1mm	上下Top/bottom±0.5mm 左右left/right±0.1mm
机器速度 Mechanical speed	Up to 7500 sheet/hour	Up to 7500 sheet/hour	Up to 7000 sheet/hour
电源电压Power voltage	380V/50HZ（三相）	380V/50HZ（三相）	380V/50HZ（三相）
整机功率Machine power	10.5KW（加温Heating 16.5KW）	11.5KW（加温Heating 17.5KW）	13.5KW（加温Heating 19.5KW）
整机重量Machine weight	3000KG	3300KG	3700KG
外形尺寸Dimension(L*W*H)	L7500*W1450*H1750mm	L7500*W1620*H1750mm	L8000*W1750*H1850mm

由于机械设备升级，可能会更改规格或尺寸，恕不另行通知。
Specifications or sizes may be changed without notice due to mechanical equipment upgrades.

设备特性/FEATURES
1、给纸部 Paper Feeding Assembly
本机采用进口抽纸皮带进行底部抽纸，可不停机连续加纸 ;间断式皮带输送采用伺服控制和光电控制，根据纸张长 短可在人机界面上进行调整间断输送长短;多条输送皮带 都装有齿轮和齿条装置，可调整皮带的左右位置。
This machine used the japan imported belt to draw out the paper from the bottom and non stop machine used to continuously add and feedthe paper, intermittent belt for paper carrying and feeding has used the servo control, the intermittent paper carrying length can be adjusted on the human machine operation interface according to the length of paper, multiple carrying belts have been equip- ped with gear and gearrack device which can adjust the position of belt, be more left or moreright.
2、上胶部 Gluing Assembly
采用单条高硬度不锈钢管辊传动胶水，管辊支坐采用偏心装置，可 调整胶水的厚薄;采用柔性模版印胶,模版形状可根据产品需要刻制 安装模版的辊刻有基准线，安装模版准确、方便、快捷，胶水宽 窄可根据产品调节，不浪费胶水，印胶左右位置可随意调整，前后 位置调整采用正位调整器调整，可不停机调整印胶的前后左右位置 ，辊筒采用光电感应自动脱开装置，如空纸张时不会将胶水印在皮 带上，胶水辊清洗保养时可拉出，更加方便快捷。
One high-hardness roller circulating glue used, the roller basement adopts center- oriented device to adjust the thickness of glue; with flexo template gluing, the shape can be carved according to the pro- duct need. The roller to install the template has a reference line making the template exact, convenient and fast to install. Gluing position can be adjusted more left or more right, the position regu- lator can adjust it to more front or more behind, the non-stop ma- chine adjusted the position to all directions needed , The rollers can be disengaged to avoid glue on belt in case of on paper, Rubber roller can be towed out ,cleaning and maintenance is more conve- nient.

3、贴膜部 Filming Assembly
采用独立伺服拉膜，数字化调节胶片尺寸，贴膜部可根据产 品需求进行前后左右调节，贴膜部配有电子刹车张力装置， 保证胶片平稳运行，配有两组切角模具安装机构，-套横压 线装置和两条竖压线装置，采用前规和侧规定位纸盒位置后 将胶片贴合到纸盒上再进行横刀切断，该原理具备贴合精度 高，生产稳定等特点。
An independent servo is used to pull the film, and the film size is digitally adjusted. The film pasting part can be adjusted forward, backward, left, and right according to product requi- rements. The film pasting part is equipped with an electronic brake tension device to ensure the smooth operation of the film. It is equipped with two sets of angle cutting mold instal- lation mechanisms, one set of horizontal pressing Line device and two vertical pressing line devices using the front and side rules to position the carton, then laminating the film to the carton and then cutting it with a horizontal knife. This prin- ciple has the characteristics of high lamination accuracy and stableproduction.
4、收纸部 Paper Collecting
进口柔软始终皮带输送可避免压伤产品，层迭式 整齐收纸，可独立调节速度，根据产品选择性使 用，确保完美质量。
Imported soft belt conveying can prevent pro- duct crushing, Paper is collected tidily in a sand- wiching structure, Independently adjustable speed, selective use according to product, which ensures perfect quality.

5、电器部Appliance
整机采用进口PLC程序控制，各种电气元件、检 测开关均采用德国、台湾、日本等公司产品。
The whole machine ， adopts PLC program control. All kinds of electronic components and detector switches are made in Germany, T aiwan and Japan etc.
6、胶片加热系统 Film Heating
采用电磁加热系统，高效节能，加热辊筒采用 高硬度镀铬钢辊，辊简表面镜面处理，同时配 有两套拉膜装置，保证拉膜速度同步，从而保 证不擦花胶片，实现辅助整平胶片的作用。
Employ electromagnetic heating system, The heating roller is made of high hardness steel, Mirror chrome plating, At the same time equip- ped with two sets of film pulling device; Gua- rantee drawing film speed synchronization, So as to ensure that the film does not wipe flowers. Realize the function of auxiliary flat film.

7、双面胶贴头 Double faced adhesive tape System
创新的贴双面胶技术，能适应大部分型号的双面胶 采用隔空切断的模式，双面胶切口为齿口型，可根 据实际情况，进行选配贴双面胶装置。
Innovative double-sided adhesive technology, can adopts to most types of double-sided adhesive. Double-sided adhesive incision for the tooth mouth, will not cause the damage to the product itself. According to the actual situation, select double -sided adhesive device.
